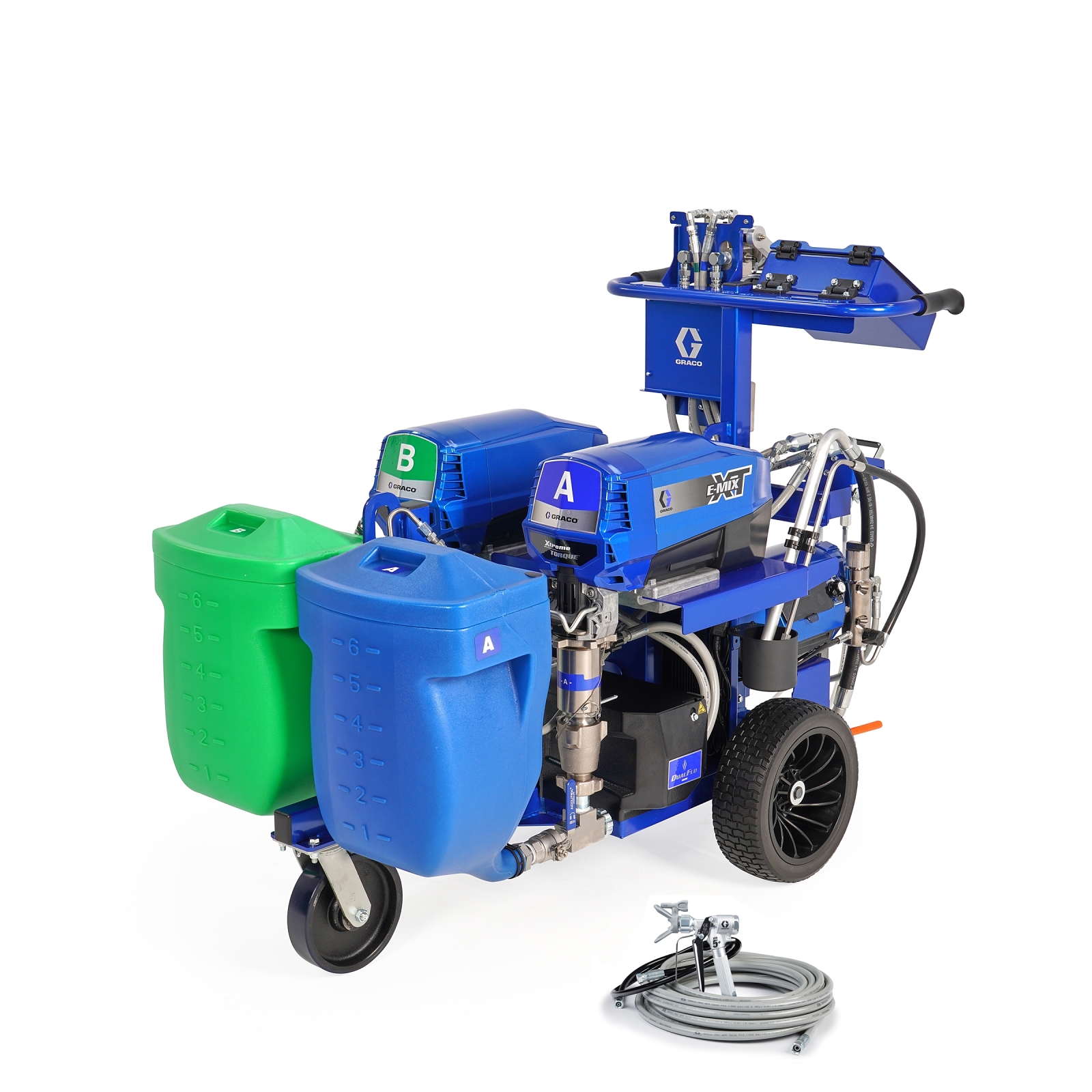

GRACO E-Mix Plural Spray

The E-Mix XT is the most economical, easy-to-operate & portable electric variable ratio spray system to date! Designed to handle spray ratios from 1:1 up to 6:1, it is also fully capable with coatings up to 100% solids content — making it an ideal solution for nearly every job!

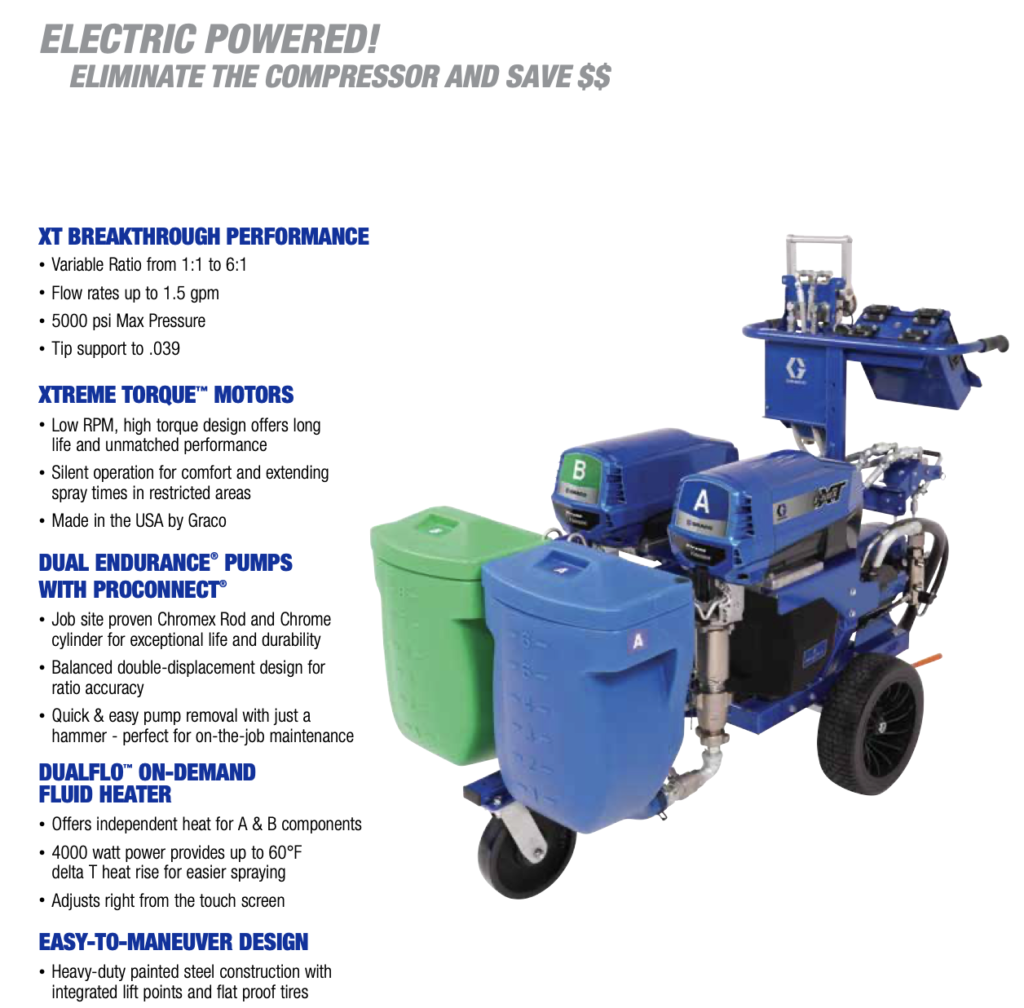

XT Breakthrough Performance
- Variable Ratio from 1:1 to 6:1
- Flow rates up to 1.5 gpm
- 5000 psi Max Pressure
- Tip support to .039
Xtreme Torque Motors For Unmatched Performance
- Silent operation for comfort and extending spray times in restricted areas
Dual Endurance Pumps With ProConnect
- Job site proven Chromex Rod and Chrome cylinder for exceptional life and durability
- Balanced double-displacement design for ratio accuracy
- Quick & easy pump removal with just a hammer – perfect for on-the-job maintenance
DualFlo On-Demand Fluid Heater
- Offers independent heat for A & B components
- 4000 watt power provides up to 60°F delta T heat rise for easier spraying
- Adjusts right from the touch screen
Easy To Maneuver Design
- Heavy-duty painted steel construction with integrated lift points and flat proof tires

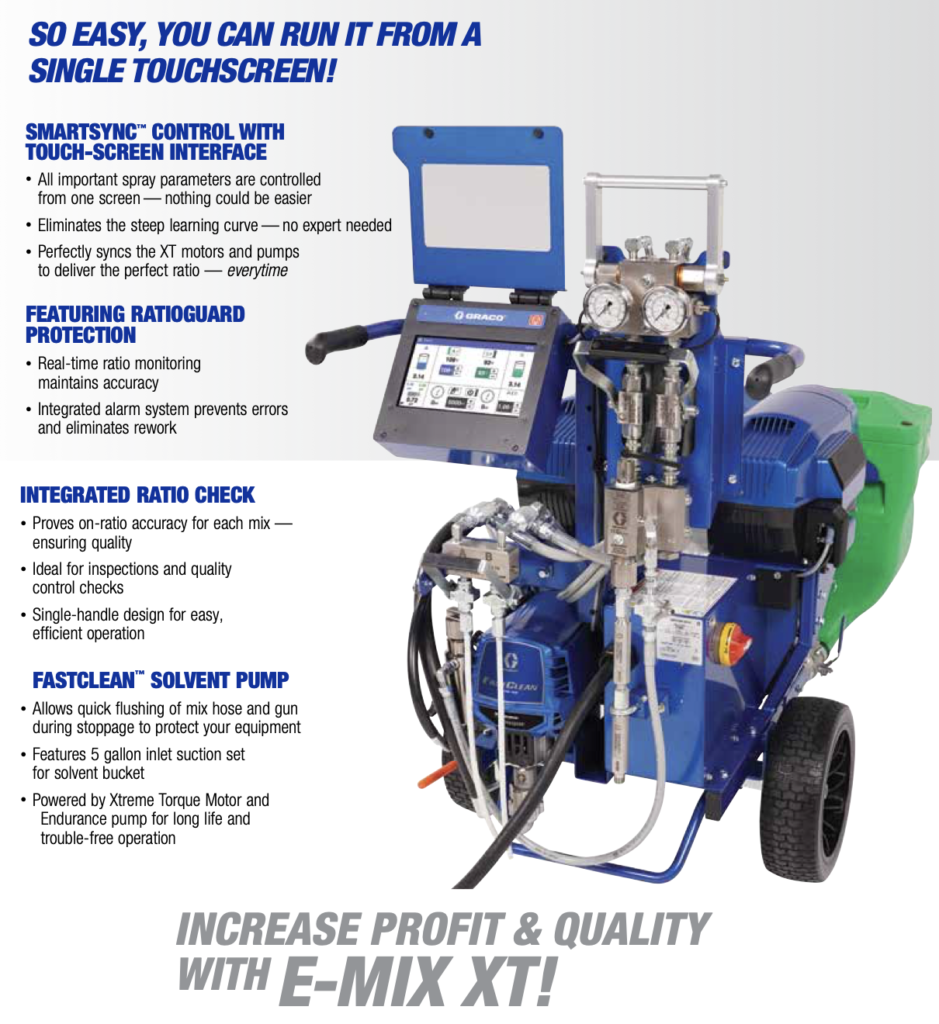

SmartSync Control With Touch-Screen Interface
- All important spray parameters are controlled from one screen — nothing could be easier
- Eliminates the steep learning curve — no expert needed
- Perfectly syncs the XT motors and pumps to deliver the perfect ratio — everytime
Featuring RatioGuard Protection
- Real-time ratio monitoring maintains accuracy
- Integrated alarm system prevents errors and eliminates rework
Integrated Ratio Check
- Proves on-ratio accuracy for each mix — ensuring quality
- Ideal for inspections and quality control checks
- Single-handle design for easy, efficient operation
FastClean Solvent Pump
- Allows quick flushing of mix hose and gun during stoppage to protect your equipment
- Features 5 gallon inlet suction set for solvent bucket
- Powered by Xtreme Torque Motor and Endurance pump for long life and trouble-free operation
